DigiMap2
DigiMap2 is a tool to digitize scanned documents. It was originally developed to transfer compressor
performance maps in PDF files to digital data tables. However, DigiMap2 is useful to digitize any curves
from any image.

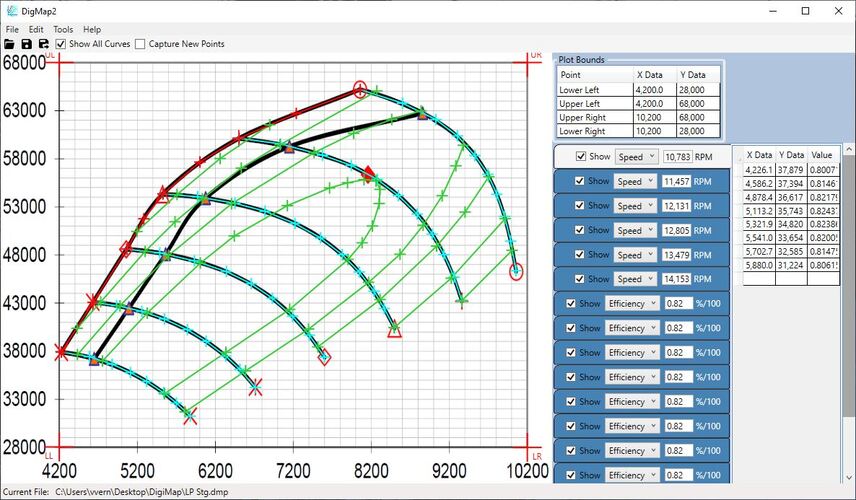

The image to be digitized is entered in DigiMap2 by Windows cut/paste from some other graphics
viewer or capturing program. The user adjusts the plot bounds to the scanned image and defines the
x and y scale values of these bounds. Curves are then digitized using the mouse.
Additional tools are available to:
If you like DigiMap2 and can afford to help support software development, please make a donation. Contributors will receive a license code will be provided to skip the nag screen on startup.
Site licenses of DigiMap2 are available. We can work with your IT department to make DigiMap2 available within your company's internal software distribution system.
performance maps in PDF files to digital data tables. However, DigiMap2 is useful to digitize any curves
from any image.
The image to be digitized is entered in DigiMap2 by Windows cut/paste from some other graphics
viewer or capturing program. The user adjusts the plot bounds to the scanned image and defines the
x and y scale values of these bounds. Curves are then digitized using the mouse.
Additional tools are available to:
- Automatically generate surge and constant efficiency curves for compressor performance head/flow maps
- Export data to .txt format for CPerf
- Export data to .csv format
If you like DigiMap2 and can afford to help support software development, please make a donation. Contributors will receive a license code will be provided to skip the nag screen on startup.
Site licenses of DigiMap2 are available. We can work with your IT department to make DigiMap2 available within your company's internal software distribution system.
Thanks for contributing to DigiMap2! Please use the quantity field at checkout to adjust your donation amount. |
